ET-SGM30A


The category:

Round Spur Gear Motor


>Size(WL): Φ30.0mm >Voltage: 12-24VDC >Rotating speed: 10-600rpm >Typical use: Window opener

Product details


Overviews
Performance Range: Key Features: Typical Applications:
-Voltage: 12~24VDC
-Speed: 10~600rpm
-Torque: 0.5~10kg.cm


-Carbon Brush
-CW/CCW Running
-Low noise
-Intelligent Cleaner
-Vending and Banking Automation
-Automotive Door Opener
Gear Ratio
Gear Ratio Stage 2 3 4 5
Gear Ratio 10 20 60 120
  30 90 180
    100 270
      300


Gearbox Length(L)  23

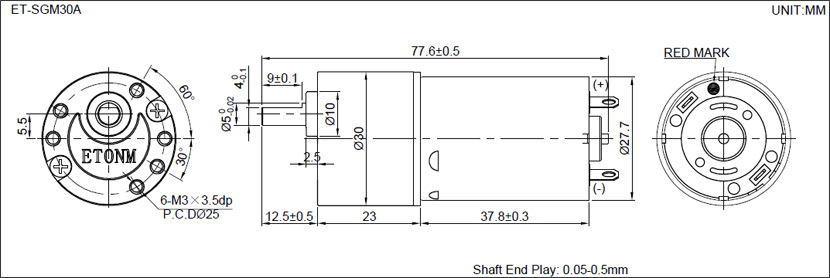

Dimensions

pic

Reference Data
MODEL VOLTAGE NO LOAD AT RATED LOAD
OPERATION
RANGE
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE
r/min A r/min A kg.cm
ET-SGM30A-12600 6.0-14.0 12.0 600 ≤0.25 470 ≤0.77 0.6
ET-SGM30A-12300 6.0-14.0 12.0 300 ≤0.25 235 ≤0.77 1.0
ET-SGM30A-12200 6.0-14.0 12.0 200 ≤0.25 156 ≤0.77 1.5
ET-SGM30A-12100 6.0-14.0 12.0 100 ≤0.25 78 ≤0.77 2.7
ET-SGM30A-1266 6.0-14.0 12.0 66 ≤0.25 52 ≤0.77 4.0
ET-SGM30A-1260 6.0-14.0 12.0 60 ≤0.25 47 ≤0.77 4.5
ET-SGM30A-1250 6.0-14.0 12.0 50 ≤0.25 39 ≤0.77 5.0
ET-SGM30A-1233 6.0-14.0 12.0 33 ≤0.25 26 ≤0.77 7.5
ET-SGM30A-1222 6.0-14.0 12.0 22 ≤0.25 17 ≤0.77 10*
ET-SGM30A-1220 6.0-14.0 12.0 20 ≤0.25 15 ≤0.77 10*
Remarks:
1. Shaft dimension can be customized.
2. The Nominal Voltage can be 6V, 12V, 24V; The DC Motor's speed can be customized.
3. This gearbox can matched with longer higher torque DC Motor. and also shorter motor.
