ET-RGM42A

The category：

Planetary Gear Motor

12 volt 600 rpm high torque electric geared motor >Size(WL)： Φ42mm >Voltage： 12-24VDC >Rotating speed： 1-200rpm >Typical use：Home and Office Automation、Equipment and Apparatus、Medical Device

Product details

Overviews
Performance Range:
Key Features:
Typical Applications:
-Voltage: 12-24VDC
-Speed: 1-200rpm
-Torque: 10-200kg.cm
 -High Torque
-Precise Metal Gears
-CW/CCW Running
-Home and Office Automation
-Equipment and Apparatus
-Medical Device
Gear Ratio
Gear Ratio Stage
1
2
3
4
5
Gear Ratio
3.7
13
49
181

5.1
18
67
246

　
 25
92
336

　
　
125
458

　
　
　
625

　
　
　
　
　
Gearbox Length(L)mm
33.7
43.7
53.7
63.7

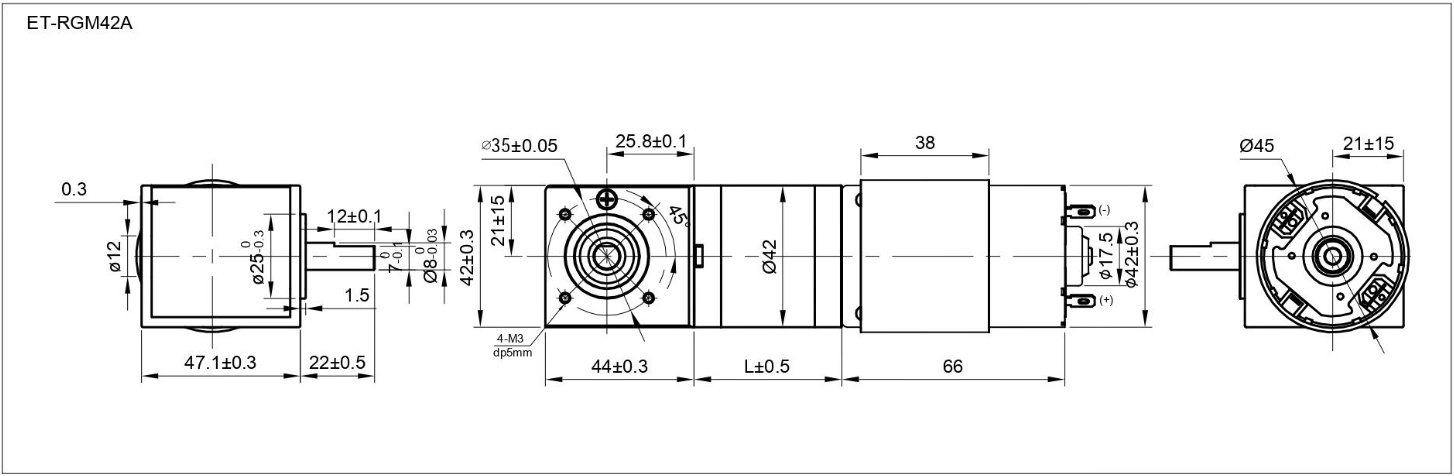

Dimensions
pic
Reference Data

MODEL
VOLTAGE
NO LOAD
AT RATED LOAD
OPERATION RANGE
NOMINAL
SPEED
CURRENT
SPEED
CURRENT
TORQUE
r/min
A
r/min
A
kg.cm
ET-RGM42-241000
15.0-28.0
24VDC
1000
≤0.7
 840
≤3.3
 1.4
ET-RGM42-24370
15.0-28.0
24VDC
370
≤0.7
310
≤3.3
 1.8
ET-RGM42-24270
15.0-28.0
24VDC
270
≤0.7
229
≤3.3
 4.5
ET-RGM42-24200
15.0-28.0
24VDC
200
≤0.7
168
≤3.3
 6.2
ET-RGM42-24100
15.0-28.0
24VDC
100
≤0.7
 85
≤3.3
 8.5
ET-RGM42-2475
15.0-28.0
24VDC
75
≤0.7
 62
≤3.3
 15
ET-RGM42-2454
15.0-28.0
24VDC
54
≤0.7
 45
≤3.3
 20
ET-RGM42-2440
15.0-28.0
24VDC
40
≤0.7
33
≤3.3
 28
ET-RGM42-2427
15.0-28.0
24VDC
 27
≤0.7
23
≤3.3
 38
ET-RGM42-2420
15.0-28.0
24VDC
20
≤0.7
 18
≤3.3
 62
ET-RGM42-2415
15.0-28.0
24VDC
15
≤0.7
13.5
≤3.3
80*
ET-RGM42-2411
15.0-28.0
24VDC
11
≤0.7
10.2
≤3.3
80*
ET-RGM42-248.0
15.0-28.0
24VDC
8.0
≤0.7
7.6
≤3.3
80*
Remarks: 　　　　　　　
1. Shaft dimension can be customized.　　　　　　
2. The Nominal Voltage can be 12V, 24V; The DC Motor's speed can be customized.　　　
3. This gearbox can matched with other shorter DC Motor. such as 8mm shorter.
4. Motor can be with encoder, 3PPR, 7PPR.　　　　　
