16mm 1kgf.cm 6v 12v Low Rpm Planetary Metal Gearbox Motor For Smart Lock >Size(WL)： Φ16mm >Voltage： 6-12VDC >Rotating speed： 10-2000rpm >Typical use： Electric lock

Product details

Overviews

Performance Range:	Key Features:	Typical Applications:
-Voltage: 6-12VDC -Speed: 10-2000rpm -Torque 0.05-5kg.cm	-Metal/Carbon Brush -CW/CCW Running -Low noise	-Electric Curtain -Safe and Locking -Electric Valve

Gear Ratio

Gear Ratio Stage	1	2	3	4	5
Gear Ratio	4.75	12.3	43	150	712
		16	64	256	1024
		19	76	304	1216
		22.5	90	361	1444
			107	428	1715
				509	2418
Gearbox Length(L)	14	17.5	21	24.5	28

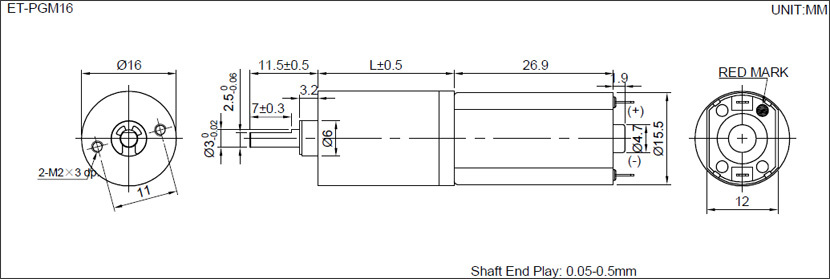

Dimensions

Reference Data

MODEL	VOLTAGE		NO LOAD		AT RATED LOAD
	OPERATION RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE
	OPERATION RANGE	NOMINAL	r/min	mA	r/min	mA	kg.cm
ET-PGM16-061600	4.5-7.2V	6VDC	1600	≤120	1300	≤220	0.03
ET-PGM16-06650	4.5-7.2V	6VDC	650	≤120	504	≤220	0.07
ET-PGM16-06500	4.5-7.2V	6VDC	500	≤120	387	≤220	0.09
ET-PGM16-06421	4.5-7.2V	6VDC	421	≤120	326	≤220	0.11
ET-PGM16-06355	4.5-7.2V	6VDC	355	≤120	275	≤220	0.13
ET-PGM16-06186	4.5-7.2V	6VDC	186	≤120	144	≤220	0.22
ET-PGM16-06125	4.5-7.2V	6VDC	125	≤120	96	≤220	0.33
ET-PGM16-0689	4.5-7.2V	6VDC	89	≤120	69	≤220	0.45
ET-PGM16-0674	4.5-7.2V	6VDC	74	≤120	58	≤220	0.55
ET-PGM16-0653	4.5-7.2V	6VDC	53	≤140	41	≤260	0.75
ET-PGM16-0631	4.5-7.2V	6VDC	31	≤140	24	≤260	1.25
ET-PGM16-06126	4.5-7.2V	6VDC	26	≤140	20	≤260	1.45
ET-PGM16-0622	4.5-7.2V	6VDC	22	≤140	17	≤260	1.8
ET-PGM16-0618	4.5-7.2V	6VDC	18	≤140	14.5	≤260	2.0
ET-PGM16-0615.5	4.5-7.2V	6VDC	15.5	≤140	12	≤260	2.4
Remarks: 　　　　　　　 1. Shaft dimension can be customized.　　　　　　 2. The Nominal Voltage can be 3V, 4.5V, 5V, 6V, 12V; The DC Motor's speed can be customized.　　　 3. This gearbox can matched with other shorter DC Motor.　 4. Motor can be with encoder,please contact us for spec.
