ET-WGM34A
The category：
Worm Gear Motor
12V Mini Electric 90 Degree Gearbox Right Angle DC Worm Gear Motor
>Size(WL)： 34*25mm
>Voltage： 3-12VDC
>Rotating speed： 20-120rpm
>Typical use： Home appliances、Robotics
Product details
Overviews
| Performance Range: | Key Features: | Typical Applications: |
|
-Voltage: 3-12VDC
-Speed: 20-120rpm -Torque: 0.1-8kg.cm |
-Spur Low noise -Small Backlash -High Holding Torque |
-Electric Blinds,Curtain
-Electric Valve -Robotics
|
Gear Ratio
| Gear Ratio Stage | 3 | 4 | 5 | |
| Gear Ratio | 65.5 | |||
| 131 | ||||

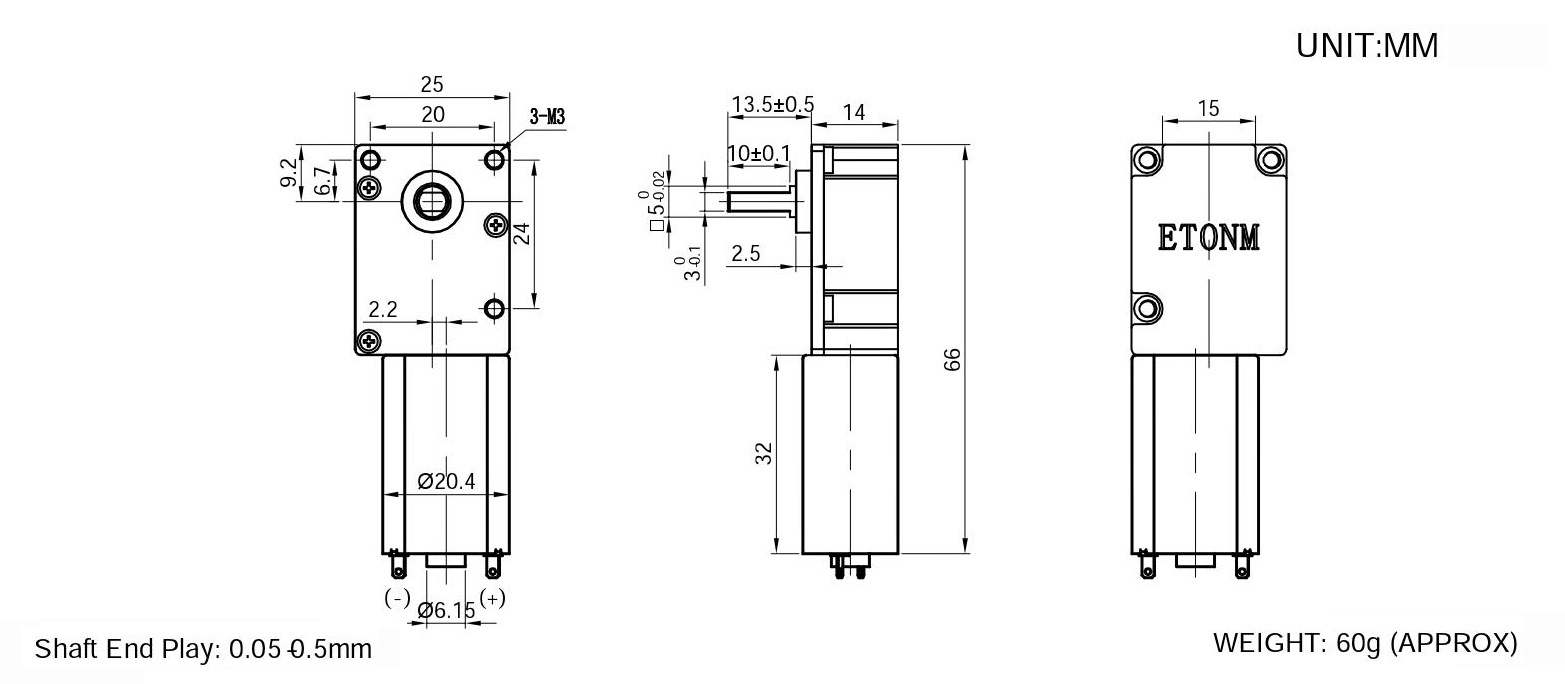

Dimensions
Reference Data
| MODEL | VOLTAGE | NO LOAD | AT RATED LOAD | ||||
| OPERATION RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| r/min | A | r/min | A | kg.cm | |||
| ET-WGM34A-0675 | 15.0-28.0 | 6VDC | 75 | ≤0.08 | 64 | ≤0.3 | 0.43 |
| ET-WGM34A-0637.7 | 15.0-28.0 | 6VDC | 37.7 | ≤0.08 | 30 | ≤0.3 | 0.86 |
| ET-WGM34A-1291.6 | 15.0-28.0 | 12VDC | 91.6 | ≤0.07 | 76 | ≤0.2 | 0.67 |
| ET-WGM34A-1245.8 | 15.0-28.0 | 12VDC | 45.8 | ≤0.07 | 38 | ≤0.2 | 1.3 |
| Remarks: 1. Gearbox Shaft can be made with double shaft, shaft dimension can be customized. 2. The Nominal Voltage can be 3VDC, 6VDC, 12VDC; The DC Motor's can be customized. 3. This gearbox can matched with other shorter Motors. |
|||||||
