12V 24V 3.5Rpm DC gear motor 100KG.CM micro motor For Water Valve >Size(WL)： 58*40mm >Voltage： 12-24VDC >Rotating speed： 1-100rpm >Typical use： Electric curtain/Blinds、Valve

Product details

Performance Range:	Key Features:	Typical Applications:
-Voltage: 12~24VDC -Speed: 1~100rpm -Torque: 1~80kg.cm	-Spur Low noise -Small Backlash -High Holding Torque	-Electric Blinds,Curtain -Electric Valve -Robotics

Gear Ratio

Gear Ratio Stage	3	4	5
Gear Ratio	49	217
	74	291
	100	506
		634
		1269

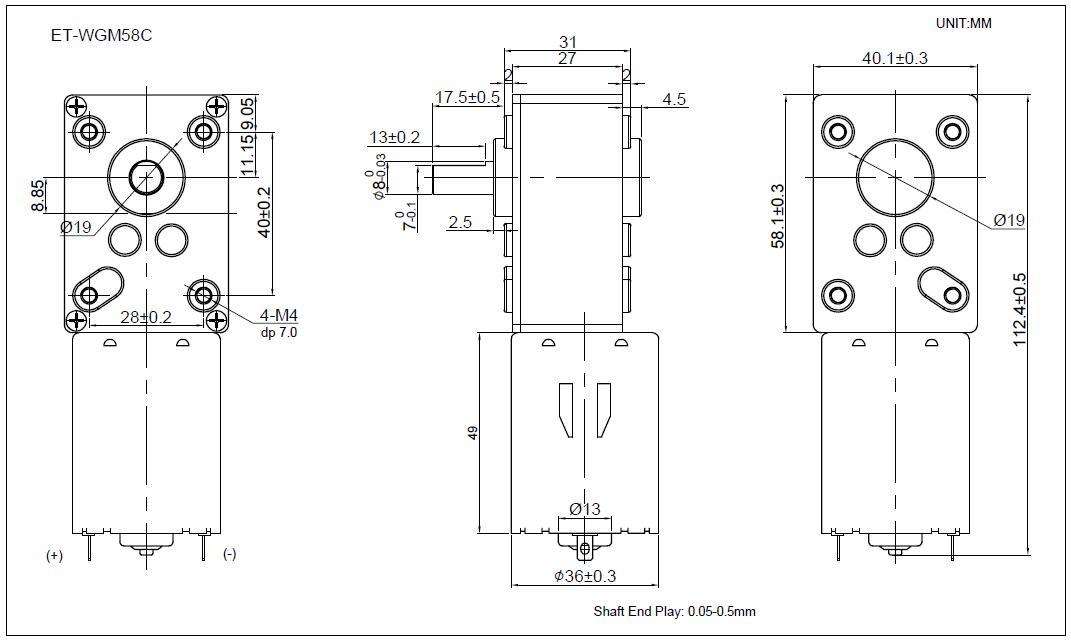

Dimensions

Reference Data

MODEL	VOLTAGE		NO LOAD		AT RATED LOAD
	OPERATION RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE
	OPERATION RANGE	NOMINAL	r/min	A	r/min	A	kg.cm
ET-WGM58C-1292	9.0-14.0	12.0	92	≤0.30	78	≤0.85	5
ET-WGM58C-1261	9.0-14.0	12.0	61	≤0.30	50	≤0.85	8
ET-WGM58C-1245	9.0-14.0	12.0	45	≤0.30	37	≤0.85	11
ET-WGM58C-1220	9.0-14.0	12.0	20	≤0.30	17	≤0.85	24
ET-WGM58C-1215.5	9.0-14.0	12.0	15.5	≤0.30	12.5	≤0.85	33
ET-WGM58C-128.9	9.0-14.0	12.0	8.9	≤0.30	7	≤0.85	50
ET-WGM58C-1207	9.0-14.0	12.0	7	≤0.30	5.8	≤0.85	62
ET-WGM58C-123.5	9.0-14.0	12.0	3.5	≤0.30	2.9	≤0.85	80*
ET-WGM58C-24122	20.0-28.0	24.0	122	≤0.20	106	≤0.70	7.4
ET-WGM58C-2481	20.0-28.0	24.0	81	≤0.20	67	≤0.70	11
ET-WGM58C-2412	20.0-28.0	24.0	12	≤0.20	10	≤0.70	69
Remarks: 　　　　　　　 1. Gearbox Shaft can be made with double shaft, shaft dimension can be customized.　　　 2. The Nominal Voltage can be 12.0VDC, 24VDC; The DC Motor's speed is adjustable. 3. This Gearbox can matched with other smaller or bigger DC Motors.　such as ET-WGM58B and ET-WGM58A.　 4. Motor can be with encoder, 3PPR, 7PPR.

ET-WGM58B
