ET-CGM95B
ETONM Motor High Torque Dc gear motor Electric Engine Moter 12v 24v
>Size(XYZ)： 95*60mm
>Voltage： 12-24VDC
>Rotating speed： 1-170rpm
>Typical use： Equipment and apparatus
ETONM Motor High Torque Dc gear motor Electric Engine Moter 12v 24v
>Size(XYZ)： 95*60mm
>Voltage： 12-24VDC
>Rotating speed： 1-170rpm
>Typical use： Equipment and apparatus
Email:et@etonm.com
- 产品描述
-
- Commodity name: ET-CGM95B
OverviewsPerformance Range: Key Features: Typical Applications: -Voltage: 12~24VDC
-Speed: 1~170rpm
-Torque: 1~100kg.cm
-High Torque Small Size
-Large Speed Range
-CW/CCW Running-Home Appliances
-Banking and Vending System

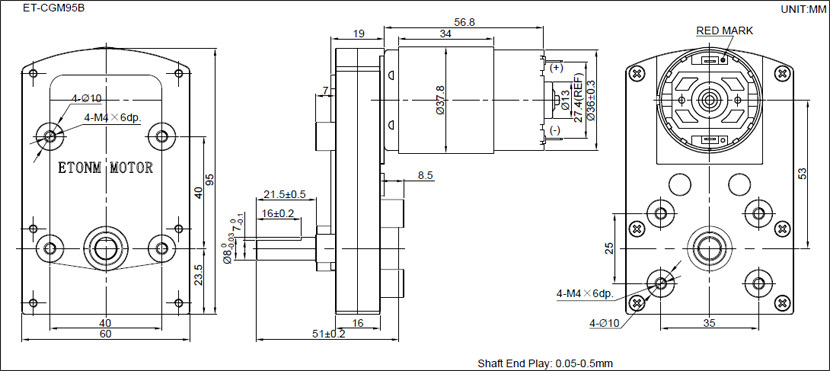

-Electric Valve and RoboticsGear RatioGear Ratio Stage 3 4 5 Gear Ratio 37 162 594 60 265 651 86 315 973 1059 Dimensions
Reference DataMODEL VOLTAGE NO LOAD AT RATED LOAD OPERATION
RANGENOMINAL SPEED CURRENT SPEED CURRENT TORQUE r/min A r/min A kg.cm ET-CGM95B-24162 12.0-24.0 24.0 162 ≤0.2 135 ≤1.0 7 ET-CGM95B-24100 12.0-24.0 24.0 100 ≤0.2 83 ≤1.0 11 ET-CGM95B-2470 12.0-24.0 24.0 70 ≤0.2 58 ≤1.0 16 ET-CGM95B-2437 12.0-24.0 24.0 37 ≤0.2 30 ≤1.0 30 ET-CGM95B-2423 12.0-24.0 24.0 23 ≤0.2 19 ≤1.0 47 ET-CGM95B-2419 12.0-24.0 24.0 19 ≤0.2 15.7 ≤1.0 58 ET-CGM95B-2410 12.0-24.0 24.0 10 ≤0.2 8.3 ≤1.0 96 ET-CGM95B-2409 12.0-24.0 24.0 9 ≤0.2 7.4 ≤1.0 96 ET-CGM95B-2406 12.0-24.0 24.0 6 ≤0.2 5 ≤1.0 120* ET-CGM95B-245.6 12.0-24.0 24.0 5.6 ≤0.2 4.5 ≤1.0 120* Remarks:
1. Gearbox Shaft can be made with double shaft, shaft dimension can be customized.
2. The Nominal Voltage can be 12VDC, 24VDC; The DC Motor's speed can be customized.
3. This gearbox can matched with other shorter DC Motors. such as ET-CGM95C, ET-CGM95F, ET-CGM95G.Also it can match with longer higher torque DC Motor,such as ET-CGM95A.Key words:- ET-CGM95B
