ET-CGM95C
high torque 10 rpm gear motor 95 mm flat gearbox motor 12v 24v
>Size(XYZ)： 95*60mm
>Voltage： 12-24VDC
>Rotating speed： 1-170rpm
>Typical use： Equipment and apparatus
high torque 10 rpm gear motor 95 mm flat gearbox motor 12v 24v
>Size(XYZ)： 95*60mm
>Voltage： 12-24VDC
>Rotating speed： 1-170rpm
>Typical use： Equipment and apparatus
Email:et@etonm.com
- 产品描述
-
- Commodity name: ET-CGM95C
OverviewsPerformance Range: Key Features: Typical Applications: -Voltage: 12~24VDC
-Speed: 1~170rpm
-Torque: 1~80kg.cm
-High Torque Small Size
-Large Speed Range
-CW/CCW Running-Home Appliances
-Banking and Vending System

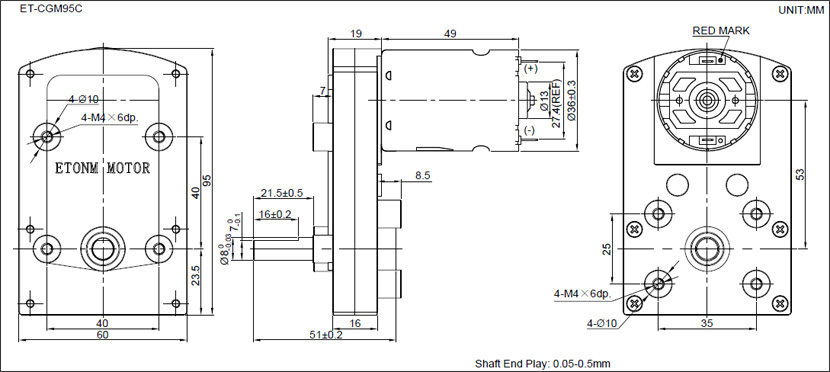

-Electric Valve and RoboticsGear RatioGear Ratio Stage 3 4 5 Gear Ratio 37 162 594 60 265 651 86 315 973 1059 Dimensions
Reference DataMODEL VOLTAGE NO LOAD AT RATED LOAD OPERATION RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE r/min A r/min A kg.cm ET-CGM95C-12162 10.0-14.0 12.0 162 ≤0.32 137 ≤1.3 4.6 ET-CGM95C-12100 10.0-14.0 12.0 100 ≤0.32 85 ≤1.3 7.4 ET-CGM95C-1270 10.0-14.0 12.0 70 ≤0.32 59 ≤1.3 10 ET-CGM95C-1237 10.0-14.0 12.0 37 ≤0.32 31 ≤1.3 18 ET-CGM95C-1223 10.0-14.0 12.0 23 ≤0.32 20 ≤1.3 30 ET-CGM95C-1219 10.0-14.0 12.0 19 ≤0.32 16 ≤1.3 35 ET-CGM95C-1210 10.0-14.0 12.0 10 ≤0.32 8.6 ≤1.3 60 ET-CGM95C-0650 6.0-12.0 6.0 50 ≤0.17 42 ≤0.8 3.5 ET-CGM95C-0635 6.0-12.0 6.0 35 ≤0.17 29 ≤0.8 5.6 ET-CGM95C-0618 6.0-12.0 6.0 18 ≤0.17 15 ≤0.8 9.6 ET-CGM95C-0603 6.0-12.0 6.0 3 ≤0.17 2.5 ≤0.8 52 Remarks:
1. Gearbox Shaft can be made with double shaft, shaft dimension can be customized.
2. The Nominal Voltage can be 12VDC, 24VDC; The DC Motor's speed can be customized.
3. This gearbox can matched with other shorter DC Motor. such as ET-CGM95F, ET-CGM95G.Also it can match with longer higher torque DC Motor,such as ET-CGM95A, ET-CGM95B.Key words:- ET-CGM95C
