ET-SGM27C

27mm dual shaft 12v 24v dc gear motor for air cooler >Size(WL)： Φ27mm >Voltage： 3-6.0VDC >Rotating speed： 3-700rpm >Typical use： Electric lock、Electric and water meter

Get Quote

Email:et@etonm.com

产品描述

Commodity name: ET-SGM27C

Overviews

Performance Range:

Key Features:

Typical Applications:

-Voltage: 3~6.0VDC
-Speed: 3~700rpm
-Torque: 0.05~5kg.cm

-Metal Brush
-CW/CCW Running
-Low noise

-Electric Valve and Meter
-Electric Drawer

-Beauty and Health Care

Gear Ratio

Gear Ratio Stage	3	4	5	6	7	8
Gear Ratio	10	21	43	92	188	392
		27	61	110	193	438
				120	210	478
				139	250	521
					317	620
						720
Gearbox Length(L)	25

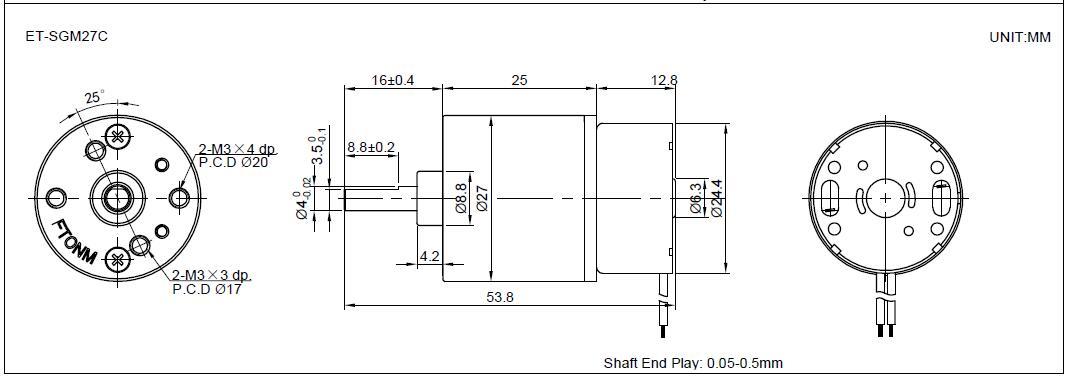

Dimensions

Reference Data

MODEL	VOLTAGE		NO LOAD		AT RATED LOAD
	OPERATION RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE
	OPERATION RANGE	NOMINAL	r/min	A	r/min	A	kg.cm
ET-SGM27C-0376	1.3-4.5	3.0	76	≤0.05	60	≤0.12	0.15
ET-SGM27C-0354	1.3-4.5	3.0	54	≤0.05	43	≤0.12	0.22
ET-SGM27C-0323	1.3-4.5	3.0	23	≤0.05	18	≤0.12	0.50
ET-SGM27C-038.4	1.3-4.5	3.0	8.4	≤0.06	6.5	≤0.15	1.38
ET-SGM27C-036.4	1.3-4.5	3.0	6.4	≤0.06	4.8	≤0.15	1.70
ET-SGM27C-06108	3.0-9.0	6.0	108	≤0.09	87	≤0.18	0.25
ET-SGM27C-0672	3.0-9.0	6.0	72	≤0.09	55	≤0.18	0.35
ET-SGM27C-0635	3.0-9.0	6.0	35	≤0.09	28	≤0.18	0.80
Remarks: 1. Shaft dimension can be customized. 2. The Nominal Voltage can be 3V, 6V; The DC Motor's speed can be customized. 3. This gearbox can matched with longer higher torque DC Motor. such as ET-SGM27A, SGM27B.
