ET-SGM15A

The category：

Round Spur Gear Motor

15mm micro gear motor for electric locks >Size(WL)： Φ15.5mm >Voltage： 1.5-6VDC >Rotating speed： 8-1000rpm >Typical use： Electric lock、Valve

Product details

Overviews
Performance Range: Key Features: Typical Applications:
-Voltage: 1.5-6VDC
-Speed: 8-1000rpm
-Torque: 0.05-5kg.cm
-Metal Brush
-CW/CCW Running
-Low noise
-Safe and Locking
-Electric Valve and Electric Switch
-Cosmetic Brush
Gear Ratio
Gear Ratio Stage 2 3 4
Gear Ratio 10  35  115
  63  150
  86  360



Gearbox Length(L)       11

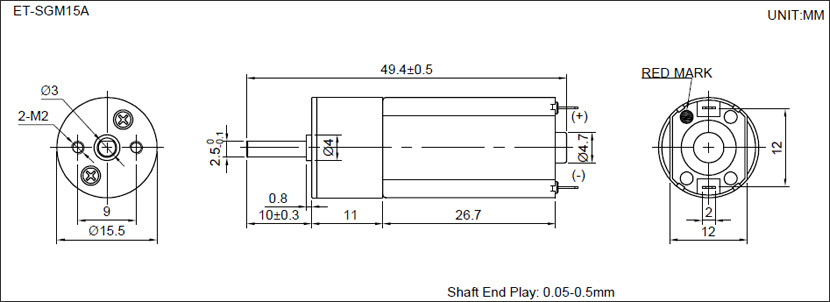

Dimensions

pic



Reference Data
MODEL VOLTAGE NO LOAD AT RATED LOAD
OPERATION
RANGE		 NOMINAL SPEED CURRENT SPEED CURRENT TORQUE
r/min A r/min A kg.cm
ET-SGM15A-121200 4.5-13.5 12.0 1200 ≤0.05 1000 ≤0.15 0.08
ET-SGM15A-12342 4.5-13.5 12.0 342 ≤0.05 274 ≤0.15 0.28
ET-SGM15A-12190 4.5-13.5 12.0 190 ≤0.05 148 ≤0.15 0.5
ET-SGM15A-12139 4.5-13.5 12.0 139 ≤0.05 104 ≤0.15 0.65
ET-SGM15A-12104 4.5-13.5 12.0 104 ≤0.05 76 ≤0.15 0.88
ET-SGM15A-1280 4.5-13.5 12.0 80 ≤0.05 58 ≤0.15 1.1
ET-SGM15A-1248 4.5-13.5 12.0 48 ≤0.05 35 ≤0.15 1.8
ET-SGM15A-1233 4.5-13.5 12.0 33 ≤0.05 24 ≤0.15 2.5
ET-SGM15A-05117 1.5-7.0 5.0 117 ≤0.08 85 ≤0.17 0.4
ET-SGM15A-0586 1.5-7.0 5.0 86 ≤0.08 61 ≤0.17 0.5
ET-SGM15A-0564 1.5-7.0 5.0 64 ≤0.08 46 ≤0.17 0.6
ET-SGM15A-0550 1.5-7.0 5.0 50 ≤0.08 36 ≤0.17 0.8
ET-SGM15A-0521 1.5-7.0 5.0 21 ≤0.08 14 ≤0.17 1.7
ET-SGM15A-0331 1.5-4.5 3.0 31 ≤0.06 22 ≤0.18 0.6
ET-SGM15A-0313 1.5-4.5 3.0 13 ≤0.06 9 ≤0.18 1.8

Remarks:
1. Shaft dimension can be customized, we usually have 4.4mm and 10mm stocks
2. The Nominal Voltage can be 1.5V, 3V, 4.5V, 5V, 6V, 9V, 12V; The DC Motor's speed can be customized.

3. This gearbox can matched with other shorter DC Motor.
