ET-PGM36BL
24V 36*50mm brushless motor with 36mm planetary gearbox dc gear motor
>Size(WL)： φ36mm
>Voltage： 12-24VDC
>Rotating speed： 1-1500rpm
>Typical use： Robot,home Appliance,Medical equipment
24V 36*50mm brushless motor with 36mm planetary gearbox dc gear motor
>Size(WL)： φ36mm
>Voltage： 12-24VDC
>Rotating speed： 1-1500rpm
>Typical use： Robot,home Appliance,Medical equipment
Email:et@etonm.com
- 产品描述
-
- Commodity name: ET-PGM36BL
OverviewsPerformance Range: Key Features: Typical Applications: -Voltage: 12-24VDC
-Speed: 1-1500rpm
-Torque: 0.1-60kg.cm-Brushless Long Lifetime
-Easy Control
-Low Noise-Robotics
-Acuator and Electric Valve

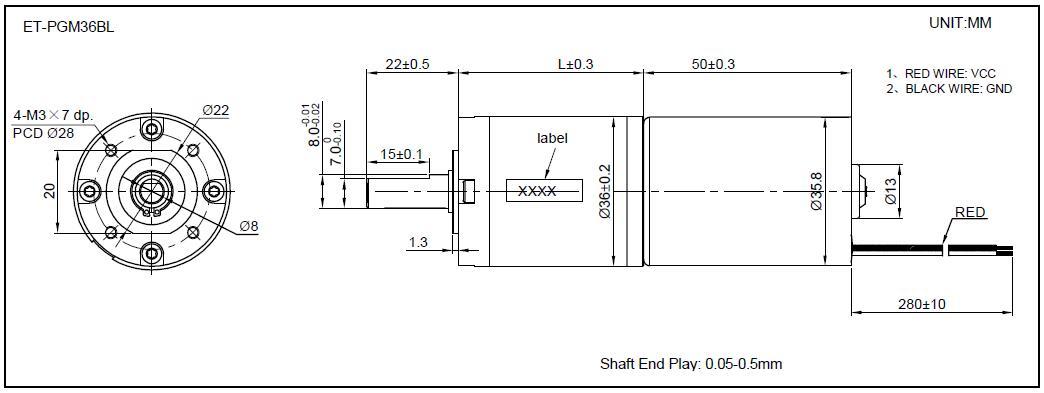

-Medical EquipmentGear RatioGear Ratio Stage 1 2 3 4 5 Gear Ratio 3.7 14 51 188 977 5.2 19 71 264 1367 27 100 369 1910 139 516 2671 721 3736 Gearbox Length(L)mm 25.2 31.7 38.5 44.7 51.4 Dimensions
Reference DataMODEL VOLTAGE NO LOAD AT RATED LOAD OPERATION RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE r/min mA r/min A kg.cm ET-PGM36BL-12357 10-15V 12VDC 357 ≤350 285 ≤1.7 2.8 ET-PGM36BL-12263 10-15V 12VDC 263 ≤350 210 ≤1.7 3.8 ET-PGM36BL-12185 10-15V 12VDC 185 ≤350 148 ≤1.7 5.5 ET-PGM36BL-1298 10-15V 12VDC 98 ≤350 78 ≤1.7 9.3 ET-PGM36BL-1270 10-15V 12VDC 70 ≤350 56 ≤1.7 13 ET-PGM36BL-1250 10-15V 12VDC 50 ≤350 40 ≤1.7 18 ET-PGM36BL-1236 10-15V 12VDC 36 ≤350 29 ≤1.7 25 ET-PGM36BL-1226.5 10-15V 12VDC 26.5 ≤350 21 ≤1.7 32 ET-PGM36BL-1218.9 10-15V 12VDC 18.9 ≤350 15 ≤1.7 44 ET-PGM36BL-1213.5 10-15V 12VDC 13.5 ≤350 11 ≤1.7 60* ET-PGM36BL-129.6 10-15V 12VDC 9.6 ≤350 7.7 ≤1.7 60* ET-PGM36BL-126.9 10-15V 12VDC 6.9 ≤350 5.5 ≤1.7 60* ET-PGM36BL-1205 10-15V 12VDC 5 ≤350 4 ≤1.7 60* ET-PGM36BL-123.6 10-15V 12VDC 3.6 ≤350 2.9 ≤1.7 60* ET-PGM36BL-122.6 10-15V 12VDC 2.6 ≤350 2 ≤1.7 60* ET-PGM36BL-121.3 10-15V 12VDC 1.3 ≤350 1 ≤1.7 60* Remarks:
1. Shaft dimension can be customized.Speed can be customized
2. The Voltage can be 12V, 24V; Motor can be with CCW/CW, PWM speed adjusting, FG signal Feedback, Brake functions.3. This gearbox can matched with other DC Motor.
