ET-PGM42
The category:
Planetary Gear Motor
>Size(WL): Φ42mm
>Voltage: 12-24VDC
>Rotating speed: 1-1500rpm
>Typical use: Ventilator、Equipment and apparatus、Robotics
Product details
Overviews
Performance Range:
|
Key Features:
|
Typical Applications:
|
-Voltage: 12-24VDC
-Speed: 1-1000rpm -Torque: 0.1-80kg.cm |
-High Torque Small Size -Large Speed Range -CW/CCW Running |
-Apparatus and Equipments
-Acuator and Electric Valve -Electric Valve and Robotics Ventilator |
Gear Ratio
Gear Ratio Stage
|
1
|
2
|
3
|
4
|
5
|
Gear Ratio
|
3.7
|
13
|
49
|
181
|
|
5.1 |
18
|
67
|
246
|
||
|
25 |
92
|
336
|
||
|
|
125
|
458
|
||
|
|
|
625
|
||
|
|
|
|
|
|
Gearbox Length(L)mm
|
33.5
|
43.5
|
53.5
|
63.5
|

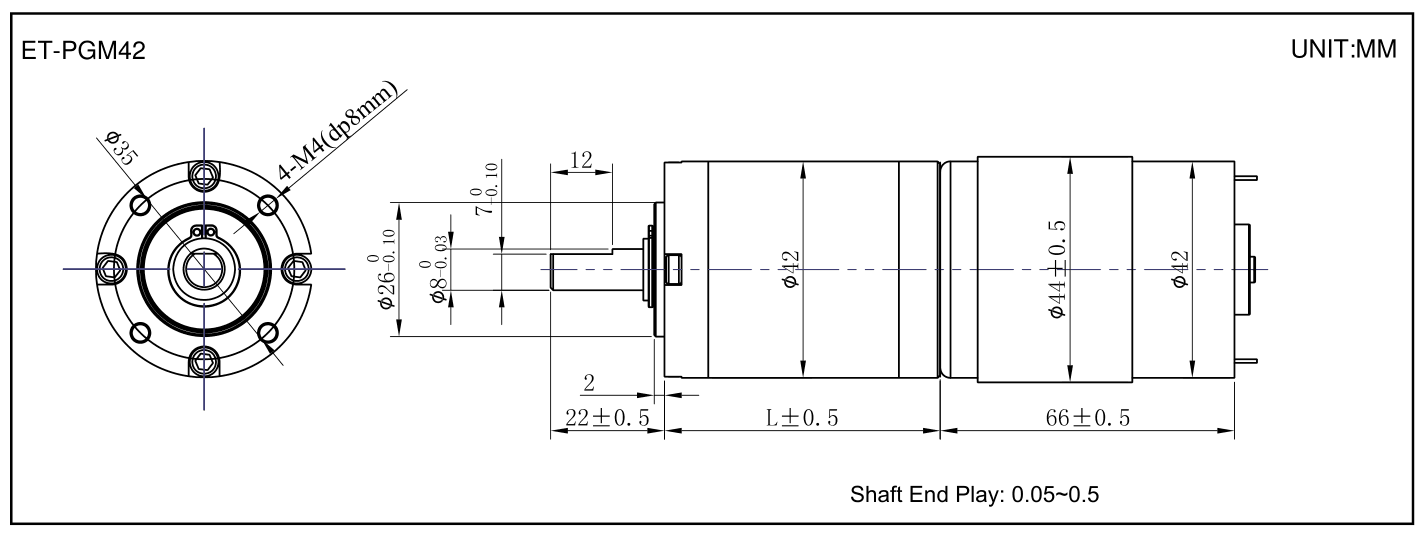

Dimensions

Reference Data
MODEL
|
VOLTAGE
|
NO LOAD
|
AT RATED LOAD
|
||||
OPERATION RANGE
|
NOMINAL
|
SPEED
|
CURRENT
|
SPEED
|
CURRENT
|
TORQUE
|
|
r/min
|
A
|
r/min
|
A
|
kg.cm
|
|||
ET-PGM42-241000
|
15.0-28.0
|
24VDC
|
1000
|
≤0.7
|
840 |
≤3.3
|
1.4 |
ET-PGM42-24370
|
15.0-28.0
|
24VDC
|
370
|
≤0.7
|
310
|
≤3.3
|
1.8 |
ET-PGM42-24270
|
15.0-28.0
|
24VDC
|
270
|
≤0.7
|
229
|
≤3.3
|
4.5 |
ET-PGM42-24200
|
15.0-28.0
|
24VDC
|
200
|
≤0.7
|
168
|
≤3.3
|
6.2 |
ET-PGM42-24100
|
15.0-28.0
|
24VDC
|
100
|
≤0.7
|
85 |
≤3.3
|
8.5 |
ET-PGM42-2475
|
15.0-28.0
|
24VDC
|
75
|
≤0.7
|
62 |
≤3.3
|
15 |
ET-PGM42-2454
|
15.0-28.0
|
24VDC
|
54
|
≤0.7
|
45 |
≤3.3
|
20 |
ET-PGM42-2440
|
15.0-28.0
|
24VDC
|
40
|
≤0.7
|
33
|
≤3.3
|
28 |
ET-PGM42-2427
|
15.0-28.0
|
24VDC
|
27 |
≤0.7
|
23
|
≤3.3
|
38 |
ET-PGM42-2420
|
15.0-28.0
|
24VDC
|
20
|
≤0.7
|
18 |
≤3.3
|
62 |
ET-PGM42-2415
|
15.0-28.0
|
24VDC
|
15
|
≤0.7
|
13.5
|
≤3.3
|
80*
|
ET-PGM42-2411
|
15.0-28.0
|
24VDC
|
11
|
≤0.7
|
10.2
|
≤3.3
|
80*
|
ET-PGM42-248.0
|
15.0-28.0
|
24VDC
|
8.0
|
≤0.7
|
7.6
|
≤3.3
|
80*
|
ET-PGM42-128.0
|
9.0-14.0
|
12VDC
|
8.0
|
≤1.4
|
7.6 |
≤6.5
|
80*
|
Remarks:
1. Shaft dimension can be customized. 2. The Nominal Voltage can be 12V, 24V; The DC Motor's speed can be customized. 3. This gearbox can matched with other shorter DC Motor. such as 8mm shorter. 4. Motor can be with encoder, 3PPR, 7PPR.
|
