ET-SGM32C


The category:

Round Spur Gear Motor


>Size(WL): Φ32.0mm >Voltage: 6-24VDC >Rotating speed: 10-500rpm >Typical use: ATM、Vending machine

Product details


Overviews
Performance Range: Key Features: Typical Applications:
-Voltage: 6~24VDC
-Speed: 10~500rpm
-Torque: 0.5~15kg.cm
-Metal/Carbon Brush
-CW/CCW Running
-Centre Shaft
-Sensor Towel/Paper Dispenser
-Vending and Banking Automation
-Robotics and Shredder
Gear Ratio
Gear Ratio Stage 3 4 5 6
Gear Ratio 13.4 40 73 170
  45.5 94 219
  52 121 282
    136 362
    155 409
      466
Gearbox Length(L) 26.5mm

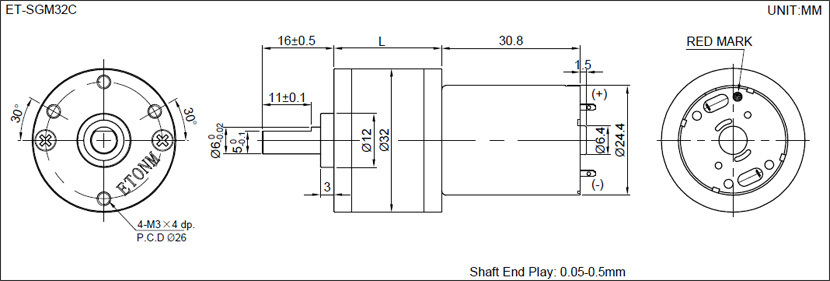

Dimensions

pic

Reference Data
MODEL VOLTAGE NO LOAD AT RATED LOAD
OPERATION
RANGE
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE
r/min A r/min A kg.cm
ET-SGM32C-12447 6.0-14.0 12.0 447 ≤0.06 373 ≤0.16 0.3
ET-SGM32C-12150 6.0-14.0 12.0 150 ≤0.06 125 ≤0.16 0.8
ET-SGM32C-12132 6.0-14.0 12.0 132 ≤0.06 110 ≤0.16 1.0
ET-SGM32C-12116 6.0-14.0 12.0 116 ≤0.06 96 ≤0.16 1.1
ET-SGM32C-1282 6.0-14.0 12.0 82 ≤0.06 68.5 ≤0.16 1.5
ET-SGM32C-1264 6.0-14.0 12.0 64 ≤0.06 53 ≤0.16 2.0
ET-SGM32C-1250 6.0-14.0 12.0 50 ≤0.06 41 ≤0.16 2.5
ET-SGM32C-1244 6.0-14.0 12.0 44 ≤0.06 37 ≤0.16 2.9
ET-SGM32C-1239 6.0-14.0 12.0 39 ≤0.06 32 ≤0.16 3.3
ET-SGM32C-1235 6.0-14.0 12.0 35 ≤0.06 30 ≤0.16 3.5
ET-SGM32C-1227 6.0-14.0 12.0 27 ≤0.06 23 ≤0.16 4.6
ET-SGM32C-1222 6.0-14.0 12.0 22 ≤0.06 18 ≤0.16 5.9
ET-SGM32C-1216.6 6.0-14.0 12.0 16.6 ≤0.06 14 ≤0.16 7.2
ET-SGM32C-1215 6.0-14.0 12.0 15 ≤0.06 12 ≤0.16 8.0
ET-SGM32C-1213 6.0-14.0 12.0 13 ≤0.06 11 ≤0.16 9.0
Remarks:
1. Shaft dimension can be customized.
2. The Nominal Voltage can be 6V, 12V, 24V; The DC Motor's speed can be customized.
3. This gearbox can match with longer higher torque DC Motor. such as ET-SGM32A. And can match with shorter Dc motor, like ET-SGM32B.
