ET-SGM20A


The category:

Round Spur Gear Motor


>Size(WL): Φ20.0mm >Voltage: 1.5-12VDC >Rotating speed: 8-1000rpm >Typical use: Electric lock、Intelligent Sanitary

Product details


Overviews
Performance Range: Key Features: Typical Applications:
-Voltage: 1.5~12VDC
-Speed: 8-1000rpm
-Torque: 0.05~6kg.cm
-Metal Brush
-CW/CCW Running
-Low noise
-Safe and Locking
-Sensor Santiary Dispenser
-Robotics
Gear Ratio
Gear Ratio Stage 2 3 4 5
Gear Ratio 10 50 100 250
12.5 62 125 313
25 78 156 391
31   195 488


Gearbox Length(L) 16 17.5 19 20.5

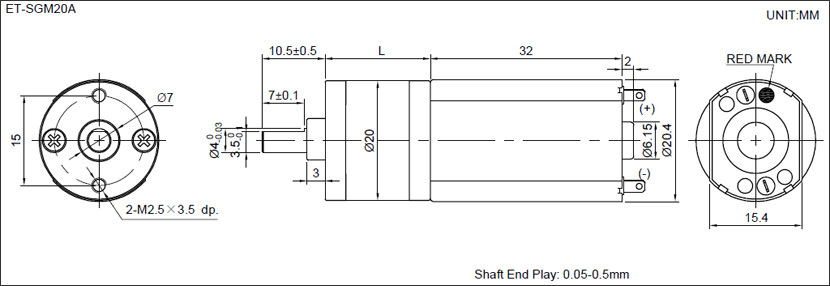

Dimensions

pic

Reference Data
MODEL VOLTAGE NO LOAD AT rated load
OPERATION
RANGE
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE
r/min A r/min A kg.cm
ET-SGM20A-12650 6.0-13.5 12.0 650 ≤0.05 530 ≤0.16 0.07
ET-SGM20A-12520 6.0-13.5 12.0 520 ≤0.05 420 ≤0.16 0.09
ET-SGM20A-12260 6.0-13.5 12.0 260 ≤0.05 210 ≤0.16 0.16
ET-SGM20A-12209 6.0-13.5 12.0 209 ≤0.05 163 ≤0.16 0.19
ET-SGM20A-12130 6.0-13.5 12.0 130 ≤0.05 99 ≤0.16 0.3
ET-SGM20A-12105 6.0-13.5 12.0 105 ≤0.05 79 ≤0.16 0.4
ET-SGM20A-1283 6.0-13.5 12.0 83 ≤0.05 62 ≤0.16 0.5
ET-SGM20A-1265 6.0-13.5 12.0 65 ≤0.05 47 ≤0.16 0.6
ET-SGM20A-1252 6.0-13.5 12.0 52 ≤0.05 37 ≤0.16 0.7
ET-SGM20A-1242 6.0-13.5 12.0 42 ≤0.05 30 ≤0.16 0.9
ET-SGM20A-1233 6.0-13.5 12.0 33 ≤0.05 23.5 ≤0.16 1.1
ET-SGM20A-1226 6.0-13.5 12.0 26 ≤0.05 18 ≤0.16 1.4
ET-SGM20A-1221 6.0-13.5 12.0 21 ≤0.05 14 ≤0.16 1.7
ET-SGM20A-1216 6.0-13.5 12.0 16 ≤0.05 11 ≤0.16 2.1
ET-SGM20A-1213 6.0-13.5 12.0 13 ≤0.05 8.8 ≤0.16 2.6
Remarks:
1. Shaft dimension can be customized.
2. The Nominal Voltage can be 3V, 6V, 9V, 12V; The DC Motor's speed can be customized.
3. This gearbox can matched with shorter DC Motor.
