ET-PGM28B


The category:

Planetary Gear Motor


>Size(WL): Φ28mm >Voltage: 6.0-24VDC >Rotating speed: 1-1500rpm >Typical use: Electric curtain/Blinds、home appliances

Product details


Overviews
Performance Range: Key Features: Typical Applications:
-Voltage: 6.0-24.0VDC
-Speed: 1-1500rpm
-Torque: 0.1-40kg.cm
-High Torque Small Size
-Large Speed Range
-CW/CCW Running
-Electric Curtain
-Acuator and Electric Valve
-Office & Home Automation
Gear Ratio
Gear Ratio Stage 1 2 3 4 5
Gear Ratio 3.4 11 38 126 423
4.7 16 51 241 585
  21.5 72 334 810
    100 462 1120
        1549
        2142
Gearbox Length(L)mm 20.5 26 32 37.5 43.3

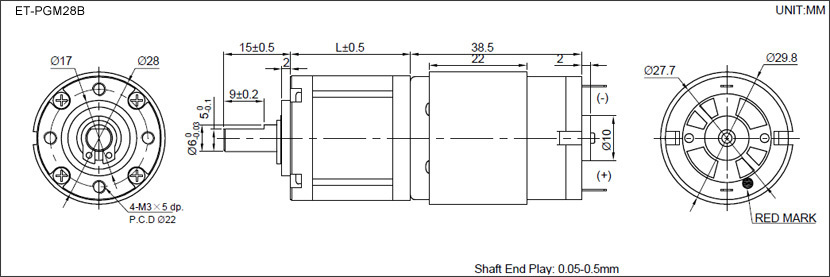

Dimensions

pic



Reference Data
MODEL VOLTAGE NO LOAD AT RATED LOAD
OPERATION RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE
r/min mA r/min mA kg.cm
ET-PGM28B-121276 6.0-14.0 12.0 1276 ≤160 1000 ≤600 0.3
ET-PGM28B-12545 6.0-14.0 12.0 545 ≤160 427 ≤600 0.6
ET-PGM28B-12375 6.0-14.0 12.0 375 ≤160 293 ≤600 0.9
ET-PGM28B-12279 6.0-14.0 12.0 279 ≤160 218 ≤600 1.2
ET-PGM28B-12158 6.0-14.0 12.0 158 ≤160 123 ≤600 1.9
ET-PGM28B-12117 6.0-14.0 12.0 117 ≤160 91 ≤600 2.6
ET-PGM28B-1284 6.0-14.0 12.0 84 ≤160 65 ≤600 3.6
ET-PGM28B-1260 6.0-14.0 12.0 60 ≤160 47 ≤600 5
ET-PGM28B-1248 6.0-14.0 12.0 48 ≤160 37 ≤600 5.7
ET-PGM28B-1225 6.0-14.0 12.0 25 ≤160 19.5 ≤600 11
ET-PGM28B-1218 6.0-14.0 12.0 18 ≤160 14 ≤600 15
ET-PGM28B-1213 6.0-14.0 12.0 13 ≤160 10 ≤600 21
ET-PGM28B-127.4 6.0-14.0 12.0 7.4 ≤160 5.7 ≤600 30*
ET-PGM28B-123.8 6.0-14.0 12.0 3.8 ≤160 3 ≤600 30*

Remarks:
1. Shaft dimension can be customized.
2. The Nominal Voltage can be 6V, 12V, 24V; The DC Motor's speed can be customized.
3. This gearbox can matched with other longer DC Motor. such as ET-PGM28A.

4. Motor can be with encoder, 3PPR, 7PPR.
