ET-PGM28A

Factory wholesale 12v 28mm high torque low rpm planetary dc gear motor >Size(WL)： Φ28mm >Voltage： 6.0-24.0VDC >Rotating speed： 1-1500rpm >Typical use： Electric curtain/Blinds、home appliances

Get Quote

Email:et@etonm.com

产品描述

Commodity name: ET-PGM28A

Overviews

Performance Range:	Key Features:	Typical Applications:
-Voltage: 6.0-24.0VDC -Speed: 1-1500rpm -Torque: 0.1-40kg.cm	-High Torque Small Size -Large Speed Range -CW/CCW Running	-Electric Curtain -Acuator and Electric Valve -Office & Home Automation

Gear Ratio

Gear Ratio Stage	1	2	3	4	5
Gear Ratio	3.4	11	38	126	585
	4.7	16	51	241	810
		21.5	72	334	1120
			100	462	1549
					2142

Gearbox Length(L)mm	20.5	26	32	37.5	43.3

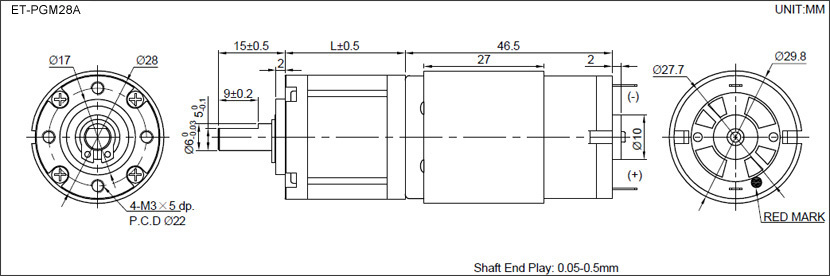

Dimensions

Reference Data

MODEL	VOLTAGE		NO LOAD		AT RATED LOAD
	OPERATION RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE
	OPERATION RANGE	NOMINAL	r/min	mA	r/min	mA	kg.cm
ET-PGM28A-241267	12.0-28.0	24.0	1276	≤100	1106	≤450	0.5
ET-PGM28A-24545	12.0-28.0	24.0	545	≤100	473	≤450	1
ET-PGM28A-24375	12.0-28.0	24.0	375	≤100	325	≤450	1.5
ET-PGM28A-24279	12.0-28.0	24.0	279	≤100	241	≤450	2
ET-PGM28A-24158	12.0-28.0	24.0	158	≤100	137	≤450	3.3
ET-PGM28A-24117	12.0-28.0	24.0	117	≤100	100	≤450	4.4
ET-PGM28A-2484	12.0-28.0	24.0	84	≤100	72	≤450	6
ET-PGM28A-2460	12.0-28.0	24.0	60	≤100	51	≤450	8
ET-PGM28A-2448	12.0-28.0	24.0	48	≤100	40	≤450	9.5
ET-PGM28A-2425	12.0-28.0	24.0	25	≤100	21	≤450	19
ET-PGM28A-2418	12.0-28.0	24.0	18	≤100	15	≤450	26
ET-PGM28A-2413	12.0-28.0	24.0	13	≤100	10.5	≤450	30
ET-PGM28A-247.4	12.0-28.0	24.0	7.4	≤100	6	≤450	40*
ET-PGM28A-243.8	12.0-28.0	24.0	3.8	≤100	3	≤450	40*
Remarks: 　　　　　　　 1. Shaft dimension can be customized.　　　　　　 2. The Nominal Voltage can be 6V, 12V, 24V; The DC Motor's speed can be customized.　　　　 3. This gearbox can matched with other shorter DC Motor.　such as ET-PGM28B. 4. Motor can be with encoder, 3PPR, 7PPR.
