ET-SGM37B


The category:

Round Spur Gear Motor


>Size(WL): Φ37mm >Voltage: 12-24VDC >Rotating speed: 10-600rpm >Typical use: BBQ, Dispenser

Product details


Overviews
Performance Range: Key Features: Typical Applications:
-Voltage: 12~24VDC
-Speed: 10~600rpm
-Torque: 0.5~10kg.cm
-Carbon Brush
-CW/CCW Running
-Low Noise
-Intelligent Cleaner
-Banking and Vending Automation
-Robotics

Gear Ratio
Gear Ratio Stage 2 3 4 5 6
Gear Ratio 10 20 50 120 450
  30 70 150 490
    90 210 630
      270 810


Gearbox Length(L) 22.5 27.5

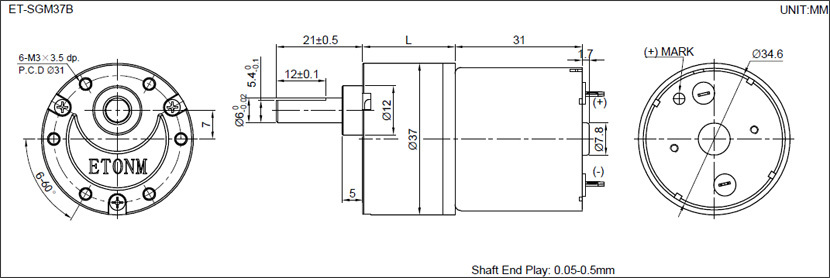

Dimensions

pic

Reference Data
MODEL VOLTAGE NO LOAD AT MAX EFFICIENCY
OPERATION
RANGE
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE
r/min A r/min A kg.cm
ET-SGM37B-24200 20.0-24.0 24.0 200 ≤0.6 173 ≤0.22 1
ET-SGM37B-24120 20.0-24.0 24.0 120 ≤0.6 104 ≤0.22 1.6
ET-SGM37B-2486 20.0-24.0 24.0 86 ≤0.6 74 ≤0.22 2.3
ET-SGM37B-2466 20.0-24.0 24.0 66 ≤0.6 58 ≤0.22 3
ET-SGM37B-2440 20.0-24.0 24.0 40 ≤0.6 35 ≤0.22 5
ET-SGM37B-2422 20.0-24.0 24.0 22 ≤0.6 19 ≤0.22 9
ET-SGM37B-249.5 20.0-24.0 24.0 9.5 ≤0.6 8 ≤0.22 20
ET-SGM37B-247.4 20.0-24.0 24.0 7.4 ≤0.6 6 ≤0.22 30
ET-SGM37B-063.5 4.5-7.2 6.0 3.5 ≤0.08 3 ≤0.18 25
Remarks:
1. Shaft dimension can be customized.
2. The Nominal Voltage can be 6V, 12V, 24V; The DC Motor's speed can be customized.
3. This gearbox can matched with longer higher torque DC Motor. such ET-SGM37F, ET-SGM37D2, ET-SGM37D. And also can match with shorter motor liek ET-SGM37E, ET-SGM37C.
